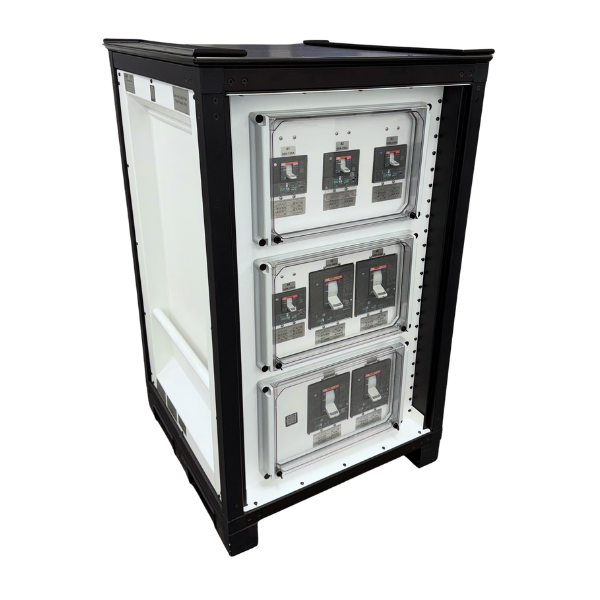

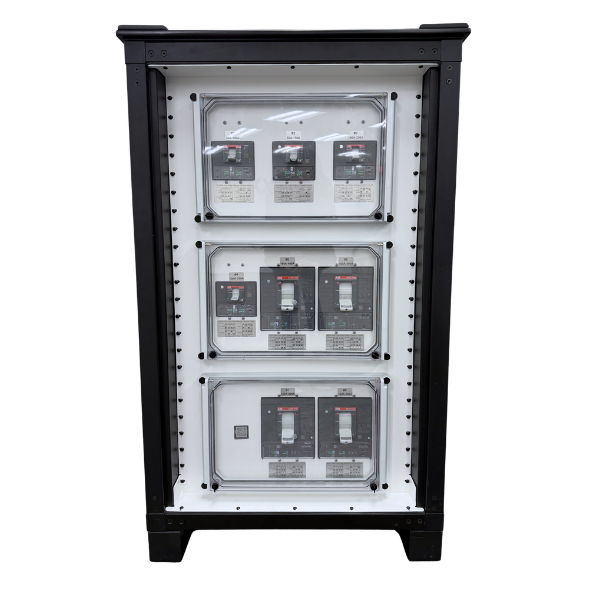

The Load Master® Series portable power distribution racks are engineered with a compact, space-saving design ideal for in-use operation, transport, and storage. Built for rugged durability and certified to cULus standards, these racks offer adjustable output ratings to easily adapt to changing power requirements—making them a flexible solution for dynamic, temporary applications.
| Part Number | PH1600W3-N1J-32JC2JD4JE |
|---|---|
| Markets | Industrial Entertainment |
| Rating | Outdoor |
| Enclosure | Rack |
| Input | Cams |
| Output | Cams |
| Amperage | 1600A |
| Certifications |  |
| Data Sheet | Print / Save As |
- Compact, space-saving design ideal for in-use operation, transport, and storage
- Fully cULus Listed to UL 1640 for outdoor use in the USA and Canada
- Distributes up to 1600A of 3-phase power with adjustable breakers on all Cam-Type outputs

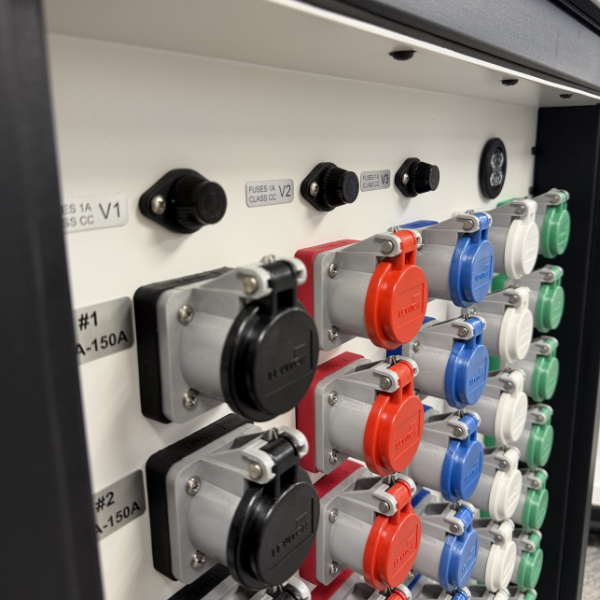

- Industry-standard CAM-type devices enable fast, easy setup
- Dip switch-adjustable breakers provide onsite flexibility without rewiring
- Built for rugged environments with proprietary aluminum framing and recessed panels
- Skid base allows forklift access, ground clearance, and trailer mounting
- Extended HDPE top and compact design protect during tight storage and transport
- Custom colors and logos available for branded applications
| Rating: | 1600A, Three Phase (H, H, H, N, G), 600Y/347 Vac |
|---|---|
| Environmental Rating: | Type 3R (Outdoor Use) |
| Input: | 1600A (4X) 400A, Cam Type, 16 Series, Straight, Panel Mount |
| Feed Thru: | No |
| Main Breaker: | None |
| Output: | (2) - Cam Type, 16 Series, 60 - 150A, Three Phase (H, H, H, N, G), 600Y/347 Vac, Panel Mount (2) - Cam Type, 16 Series, 100 - 250A, Three Phase (H, H, H, N, G), 600Y/347 Vac, Panel Mount (4) - Cam Type, 16 Series, 160 - 400A, Three Phase (H, H, H, N, G), 600Y/347 Vac, Panel Mount ALL OUTPUTS PROTECTED BY BRANCH CIRCUIT BREAKERS |
| Enclosure Type: | Outdoor Rack |
| Dimensions: | 50.7" (H) X 30.5" (W) X 31.5" (D) |
| Weight: | TBD lbs |
| Agency Approval: | cULus Listed |
