The Load Master® Series portable power distribution racks are engineered with a compact, space-saving design ideal for in-use operation, transport, and storage.Built for rugged durability and certified to cULus standards, this rack offers a main 1200A adjustable output to easily adapt to changing power requirements—making it a flexible solution for dynamic, temporary applications.
| Part Number | PH1200W3-L1J-11AJ |
|---|---|
| Markets | Entertainment Industrial |
| Rating | Outdoor |
| Enclosure | Rack |
| Input | Cams |
| Output | Cams |
| Amperage | 1200A |
| Certifications |  |
| Data Sheet | Print / Save As |
- Ideal for applications where a Main breaker or disconnect is required ranging from 480A - 1200A
- Compact, space-saving design ideal for in-use operation, transport, and storage
- Fully cULus Listed to UL 1640 for outdoor use in the USA and Canada
- Distributes up to 1200A of 3-phase power with an adjustable breaker to 16 Series Cam-Type outputs
- Industry-standard CAM-Type devices enable fast, easy setup
- Dip switch-adjustable breaker provides onsite flexibility without rewiring
- Built for rugged environments with proprietary aluminum framing and recessed panels
- Skid base allows forklift access, ground clearance, and trailer mounting
- Extended HDPE top and compact design protect during tight storage and transport
- Custom colors and logos available for branded applications
| Rating: | 1200A, Three Phase (H, H, H, N, G), 600Y/347V |
|---|---|
| Environmental Rating: | Type 3R (Outdoor Use) |

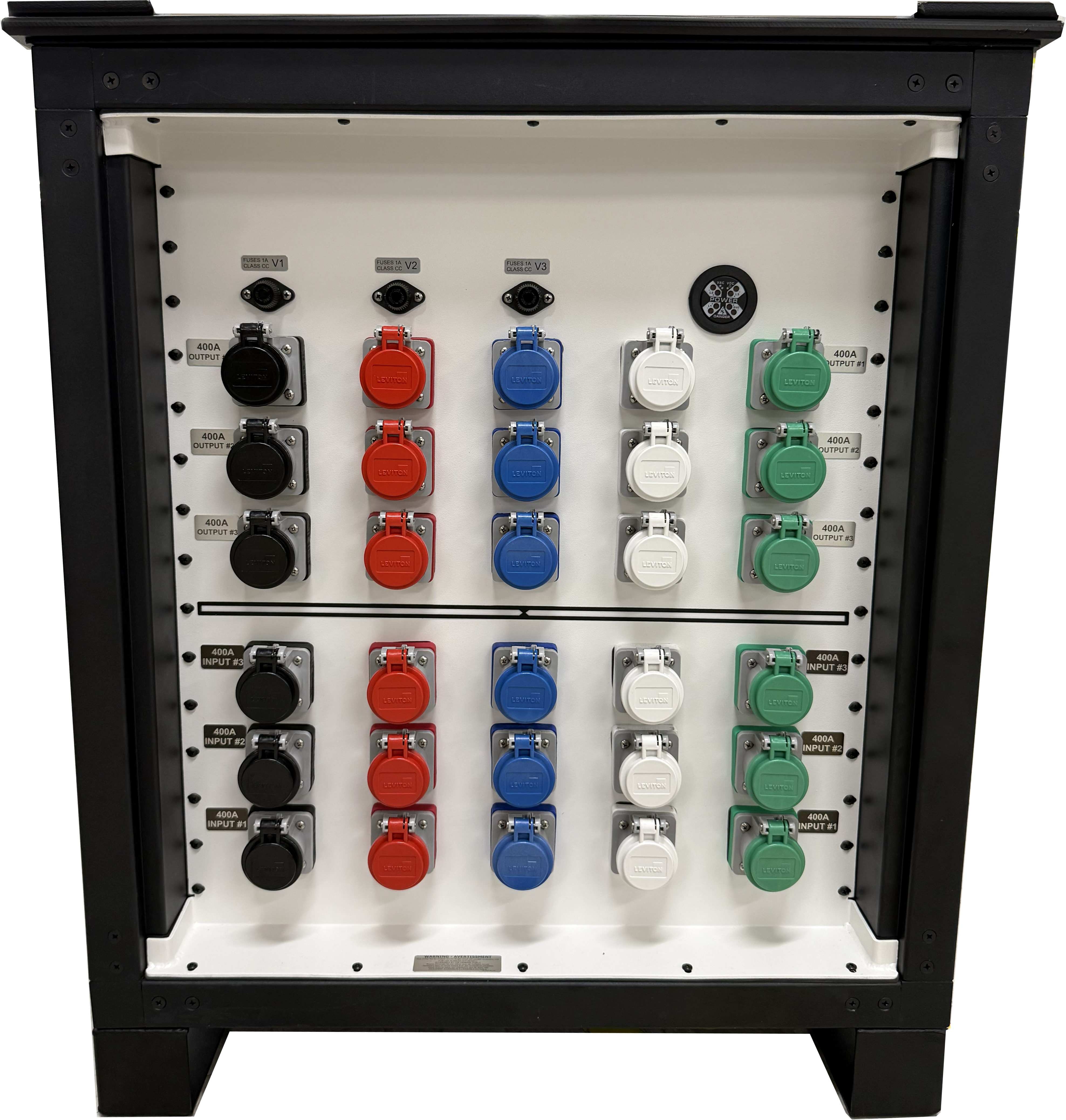

| Input: | 400A (3X) Cam Type, 16 Series, Straight, Panel Mount |
| Feed Thru: | No |

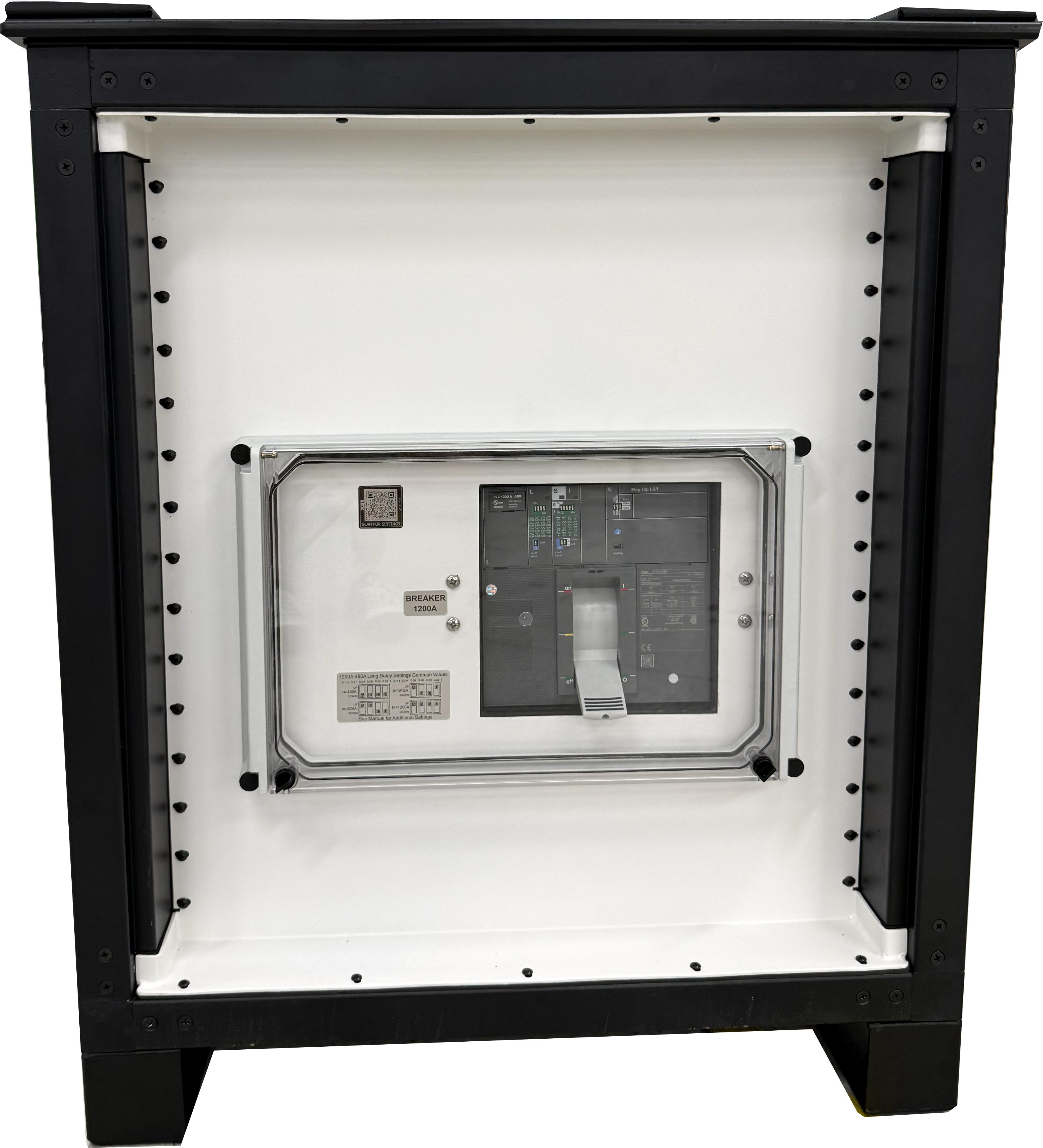

| Main Breaker: | Yes, 480-1200A Adjustable |
| Output: | 400A (3X), Cam Type, 16 Series, Straight, Panel Mount |
| Enclosure Type: | Outdoor RACK |
| Dimensions: |
36.7" (H) X 30.5" (W) X 31.5" (D) |
| Weight: | TBD lbs |
| Agency Approval: | cULus Listed |
