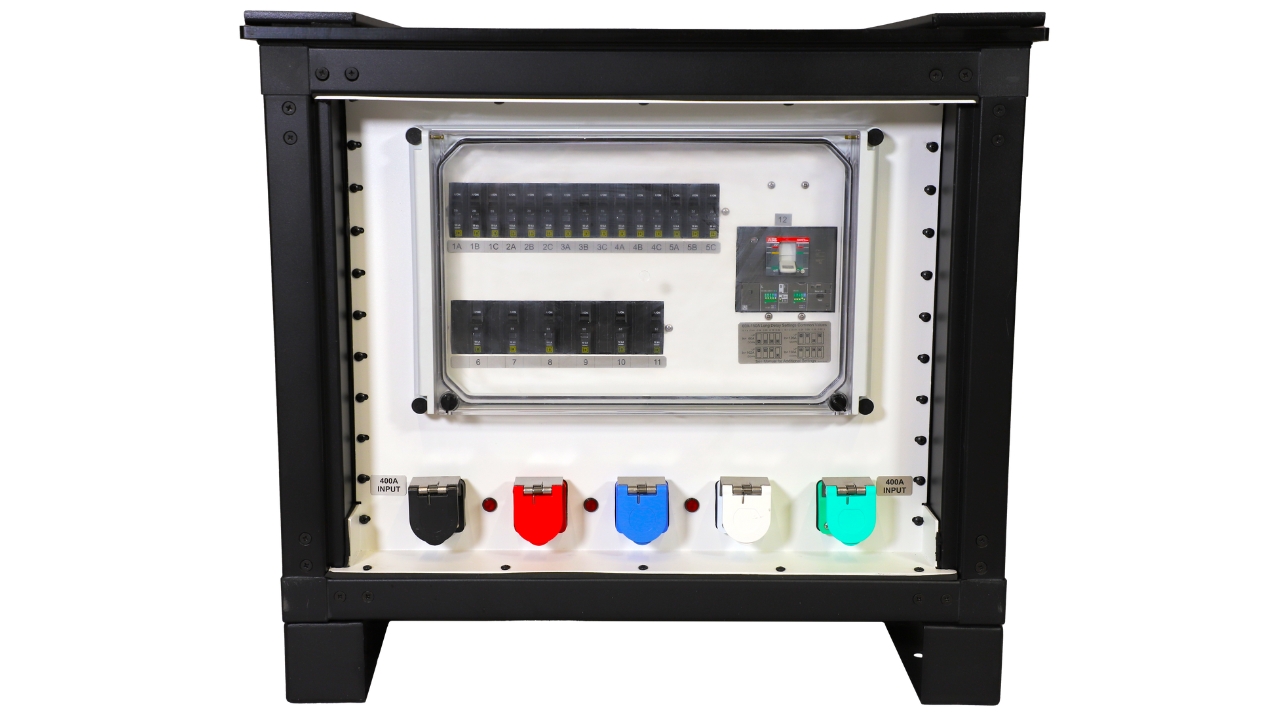

The Outdoor PowerRACK™ Slim Combo panel features (6) 50A California Style devices for spider and RV distribution, (5) L21-20 Twist Lock receptacles for QBS connections and (1) CAM Set with an adjustable 60A - 150A breaker. This portable power distribution rack is engineered with a compact, space-saving design ideal for in-use operation, transport, and storage. Built for rugged durability and certified to cULus standards, this combo rack is an all-in-one solution for dynamic, temporary applications.
| Part Number | PH400W3-N1J-35DN6DW1AV-SP |
|---|---|
| Markets | Industrial Entertainment |
| Rating | Outdoor |
| Enclosure | Rack |
| Input | Cams |
| Output | Cams California Style NEMA |
| Amperage | 400A |
| Certifications |  |
| Data Sheet | Print / Save As |
- Combination box allows for spider, RV and QBS system hook ups
- Extra Compact, space-saving design ideal for in-use operation, transport, and storage
- Fully cULus Listed to UL 1640 for outdoor use in the USA and Canada
- Industry-standard CAM-type devices enable fast, easy setup
- CAM-type output offers an adjustable breaker ranging from 60A - 150A
- Distribute power to quad string cables, specifically designed for independant phase distribution
- Built for rugged environments with proprietary aluminum framing and recessed panels
- Skid base allows forklift access, ground clearance, and trailer mounting
- Extended HDPE top and compact design protect during tight storage and transport
- Custom colors and logos available for branded applications
| Rating: | 400A, Three Phase (H, H, H, N, G), 208Y/120Vac |
|---|---|
| Environmental Rating: | Type 3R (Outdoor Use) |
| Input: | 400A, Cam Type, 16 Series, Straight, Panel Mount |
| Feed Thru: | No |
| Main Breaker: | No |
| Output: |
(5) - Nema Twistlock, L21-20, 20A, Three Phase (H, H, H, N, G), 208Y/120Vac, Panel Mount |
| Overcurrent Protection: |
(15) 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers (6) 50 Amp, 120/240 VAC, double-pole, hydraulic magnetic, branch-rated circuit breakers (1) 60-150 Amp, three-pole, electronic circuit breakers with adjustable settings |
| Enclosure Type: | Outdoor Rack |
| Dimensions: | 27.932" (H) X 30.5" (W) X 20.0" (D) |
| Weight: | TBD lbs |
| Agency Approval: | cULus Listed |
