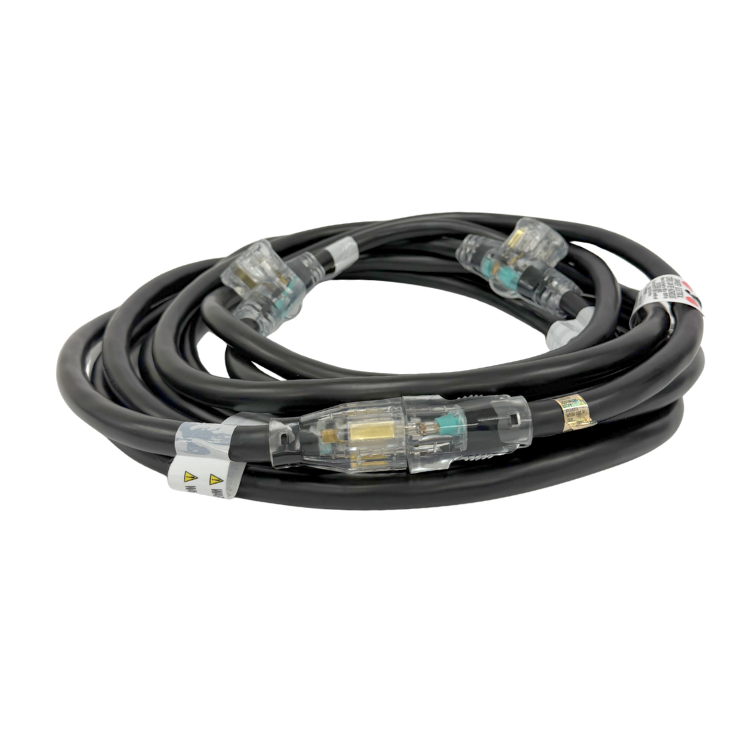

Multiple Receptacle Extensions; NEMA 5-15 Inline Plug (male) to Multiple Illuminated (under power) NEMA 5-15 Receptacles; 12/3 STOOW Cord
| Part Number | ESTyRxxFT |
|---|---|
| Functions | Power |
| Markets | Industrial Entertainment |
| Connector Type(s) | NEMA |
| Amperage | 15A |
| Certifications |  |
| Data Sheet | Print / Save As |
-A heavy-duty jacket resists abrasion and crushing, ensuring reliable performance in demanding environments

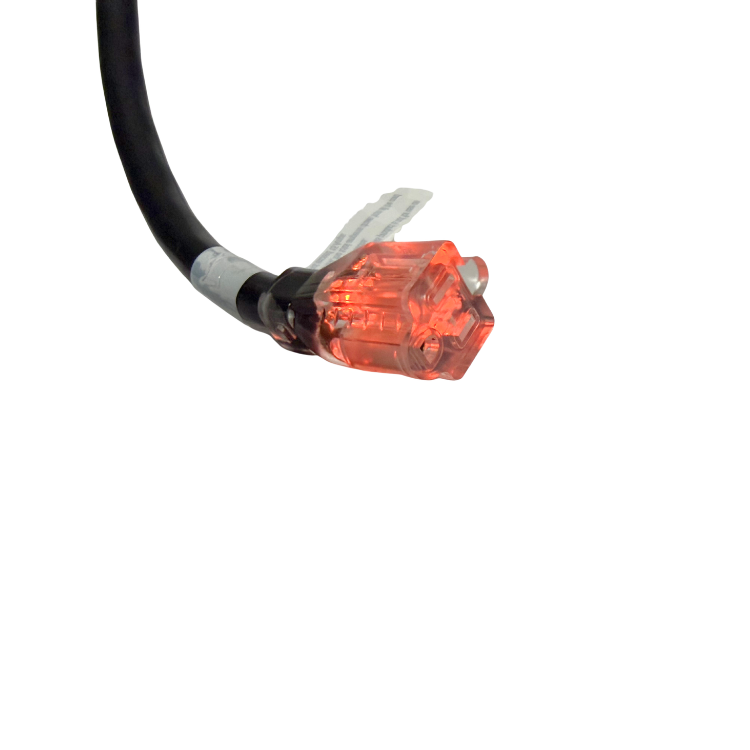

-Orange LED power indicator receptacles and connector provide a quick visual confirmation that the cord is powered, even in dark backstage areas

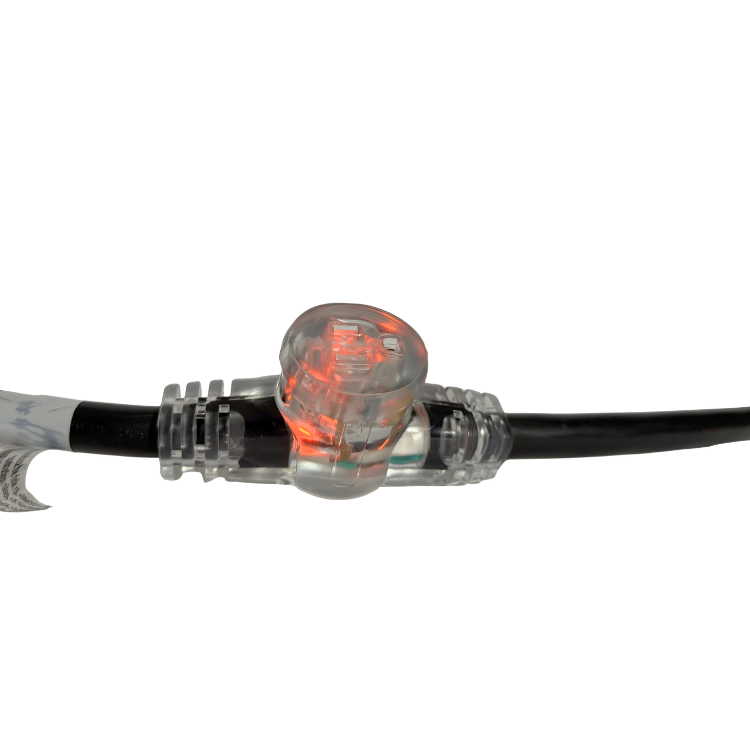

-Inline, spaced tap connectors distribute power evenly across large areas, eliminating cluttered plug-in points

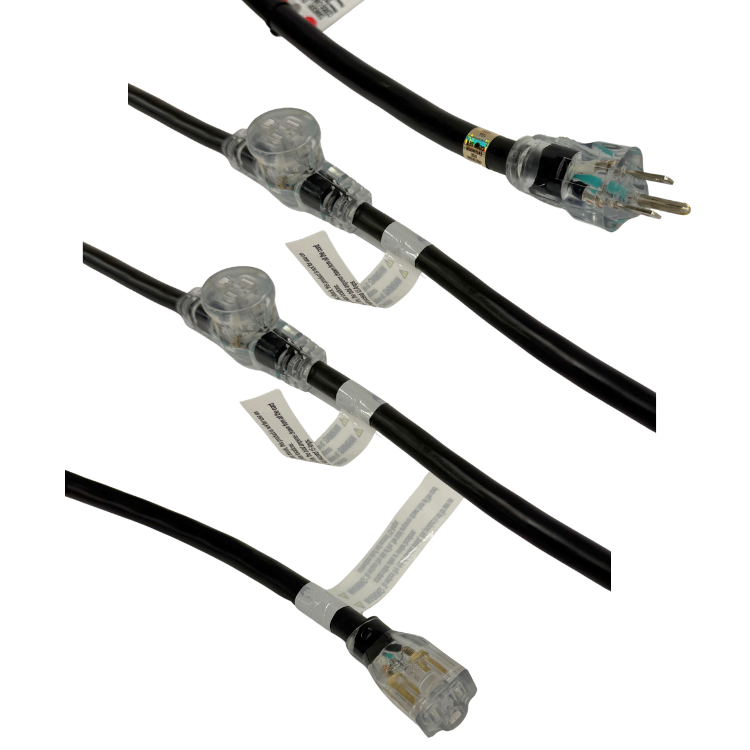

-Durable molded male and female connectors provide long-lasting strain relief for repeated setup and teardown
-Multiple length options allow you to match the exact reach needed for your layout while reducing excess cord clutter

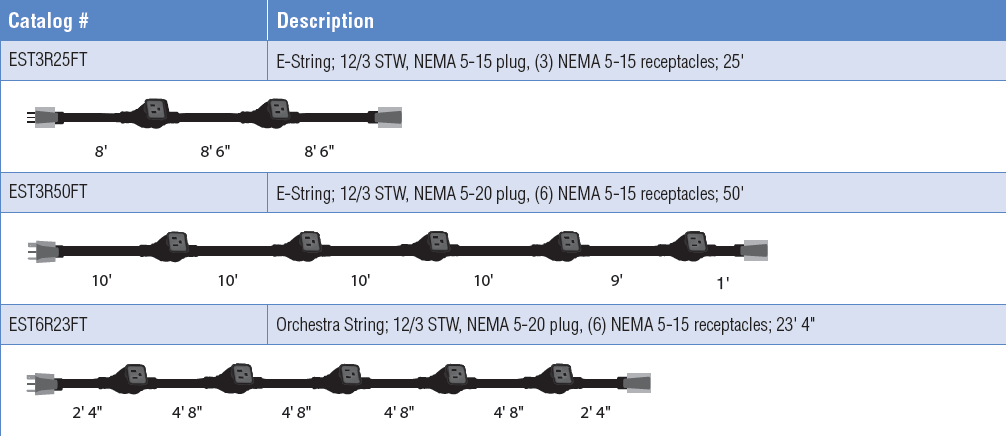

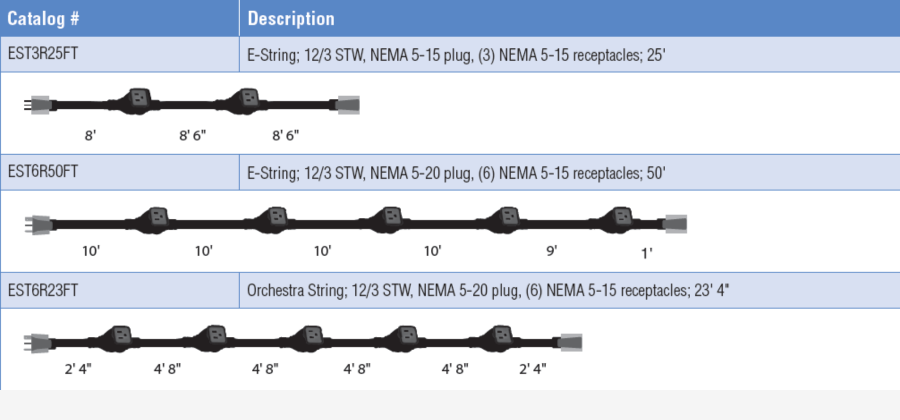

| Applications | Recommended Version | Weight | Spacing | Catalog No. |
|---|---|---|---|---|
| Music stand lights in orchestra pits | 12 AWG, (6) receptacles, 23', Black | 7 lbs. | 4' 8" | EST6R23FT |
| Meeting rooms for laptops, projectors, phones and other equipment | 12 AWG, (3) receptacles, 25', Black | 10 lbs. | 8' 6" | EST3R25FT |
| Photography lighting | 12 AWG, (3) receptacles, 25', Black | 10 lbs. | 8' 6" | EST3R25FT |
| Display booths in tents | 12 AWG, (6) receptacles, 50', White | 15 lbs. | 10' | EST6R50FT |
| Display booths in convention centers | 12 AWG, (6) receptacles, 50', Black | 15 lbs. | 10' | EST6R50FT |
| Scenery and other construction | 12 AWG, (6) receptacles, 50', Black | 15 lbs. | 10' | EST6R50FT |
| Rating: | 20 Amp, Single-phase, 125 VAC 2-Pole, 3-Wire |
|---|---|
| Male Plug: | (1) NEMA 5-15 Male (Plug) |
| Cable/Cord: | #12/3 STOOW, Black |
| Length: | 23', 25', 50' |
| Female Connector: | (3 or 6) NEMA 5-15, Clear with LED Indicator |
| Weight: | 7.0 lbs (23'), 10.0 lbs (25'), 15 lbs (50') |
| Agency Approval: | cULus Listed |
