15A 125 VAC, (1) NEMA 5-15 Male (Plug) to (1) NEMA 5-15 Female (Connector), #12/3 SPT-3 Flat Cord, Extension
| Part Number | 12GXxxFT |
|---|---|
| Functions | Power |
| Markets | Entertainment Industrial |
| Connector Type(s) | NEMA |
| Amperage | 15A |
| Data Sheet | Print / Save As |
-Low profile, with a slim design, to provide a flush mount solution for floor and wall based applications
-Flexible, lay-flat insulation for better cable management under rugs, mats, or furniture
-Reduction in trip hazards in high traffic areas

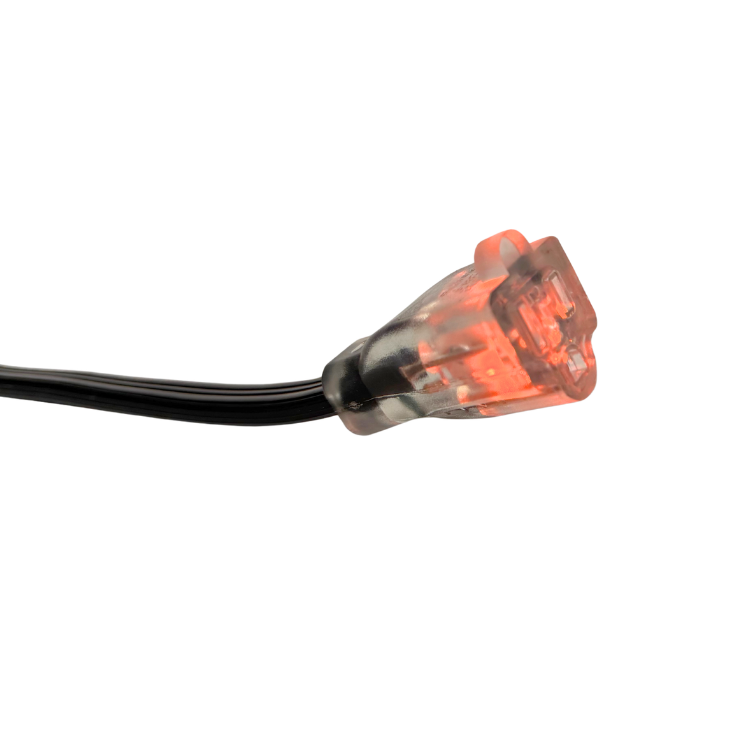

-Neon power indicator light in the female connector — provides a clear visual confirmation that the cord is receiving power, enhancing safety and usability
-Clear molded-on male and female connectors — allow visual inspection of internal terminations for added safety and quality assurance
-Lightweight, durable, and easy to handle — reduces user fatigue during setup and repositioning, enables quicker cable deployment, and ensures long-term reliability even in frequent-use environments
-Available in 15 ft., 25 ft. and 50 ft. lengths
| Rating: | 15 Amps, Single-phase (H,N,G), 2-Pole, 3-Wire, 125 VAC, 1875W, 60 Hz |
|---|---|

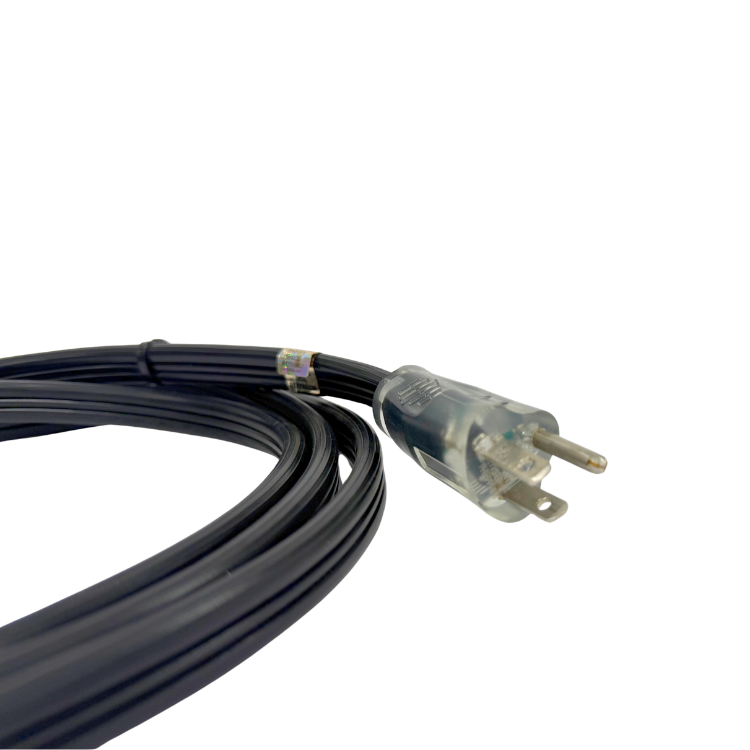

| Male Plug: | NEMA 5-15, Clear (Edison) |
| Cable/Cord: | SPT-3, 12AWG/3C, Black |
| Length: | 15', 25' or 50' |

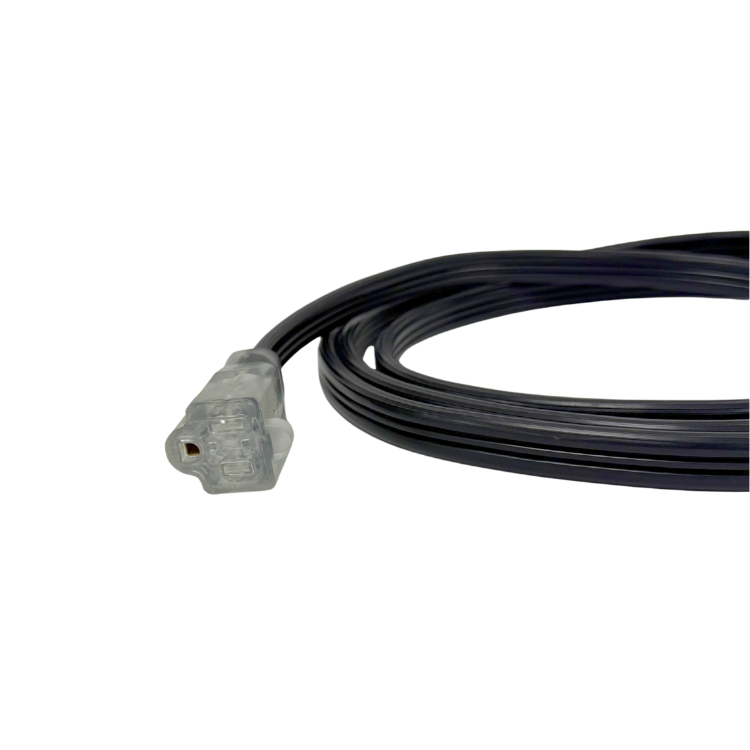

| Female Connector: | NEMA 5-15, Clear with Neon Indicator (Edison) |
| Weight: | 2.5lbs (15'), 4.15lbs (25'), or 8.30lbs (50') |
| Agency Approval: | UL Listed (15' Length Only) |
