400A 120/208 VAC, (5) 16 Series Cams, Input Panel/Manual Transfer Switch
| Part Number | PIPM0400-S-S-AJ-GRXFF |
|---|---|
| Category | Manual Transfer Switch |
| Markets | Industrial |
| Environmental Rating | Outdoor |
| Amperage | 400A |
| Certifications |  |
| Data Sheet | Print / Save As |
-Safe, convenient and economical means of connecting emergency power to a building in conjunction with a transfer switch
-Cables with 16 Series Cam-type Connectors can connect directly to the inputs, saving crucial time in emergency situations
-Cables drop downward for lowest profile against wall
-Tamper proof design limits access to connected cables
-Power distribution panel weatherproof construction for installation on building exterior ensures long life
-Dead-front panel covers all exposed electrical parts for added safety
-Individual cable holes restrict access reducing theft
Markets Served
Generator Rental, Construction, Industrial, Disaster Relief, Gas Stations, Convenience Stores, Housing Complexes, Schools and other Municipal Facilities
| Rating: | 400 Amp, 3 Phase (H,H,H,N,G), 4-Pole, 5-Wire, 120/208 VAC |
|---|---|
| Environmental Rating: | NEMA Type 3R (Outdoor Use) |
| Input: | PRIMARY (UTILITY) (5) compression terminals (H,H,H switch), wire range: 250-500 MCM, 600V, (N,G terminal blocks), wire range: 500 MCM - 4 AWG, 600V SECONDARY (BACKUP) (1) set of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, Black, Red, Blue, White, Green, (H,H,H,N,G), panel mount inlets |
| Output: | (1) set of (6) compression terminals (H,H,H,N,G), wire range: 500 MCM - 4AWG, 600V |
| Feed Thru: | None |
| Overcurrent Protection: | None |

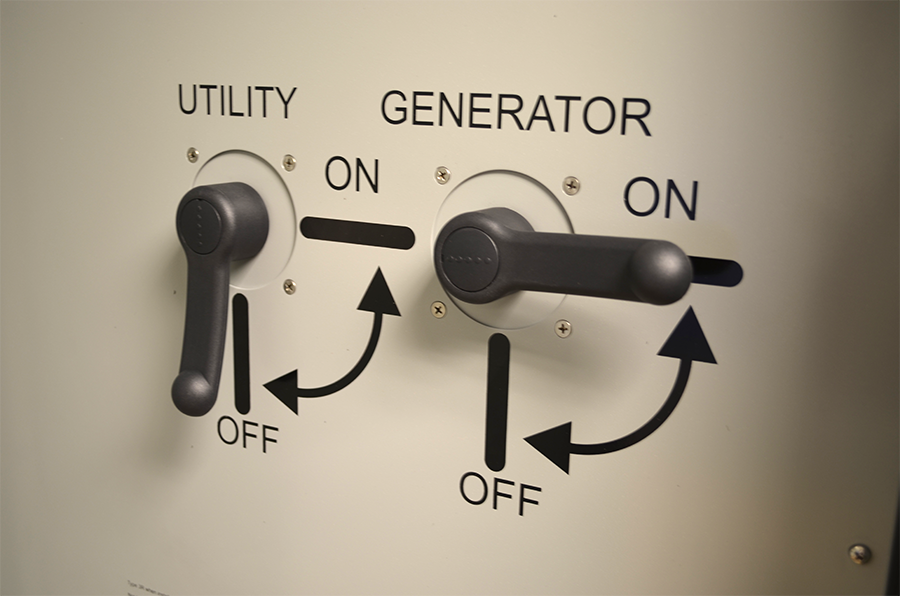

| Disconnect Switch: | (2) 400A MCS, 3P, 600V, 35KA Short Circuit Current Rating |
| Enclosure: | Powder Coated 11 gauge galvanized steel, wall mounted |
| Overall Dimensions: | 48.00"L x 30.00"W x 13.50"D |
| Weight: | 252.0 lbs. |
| Agency Approval: | cULus Listed |
